Plotting with Makie

NMRTools provides a Makie extension with nmrplot and nmrplot! for interactive or publication-quality figures. Load NMRTools and a Makie backend:

using NMRTools
using CairoMakie   # static figures; use GLMakie for interactive

1D spectra

fig = nmrplot(exampledata("1D_1H"))

 Downloading artifact: 1D_1H

Set the plot range with xlims — the y-axis rescales to fit the visible region:

fig = nmrplot(exampledata("1D_1H"), xlims=(-1, 4.5))

Overlay additional spectra with nmrplot!:

nmrplot!(fig, exampledata("1D_1H") / 2)

1D spectra can be stacked by passing the argument vstack=true, or vstack=X where X controls the spacing:

fig = Figure()
nmrplot(fig[1,1], exampledata("1D_19F_titration"), xlims=(-121.8,-125.2), vstack=true, title="vstack=true")
nmrplot(fig[1,2], exampledata("1D_19F_titration"), xlims=(-121.8,-125.2), vstack=2, title="vstack=2")
nmrplot(fig[1,3], exampledata("1D_19F_titration"), xlims=(-121.8,-125.2), vstack=10, title="vstack=10")

 Downloading artifact: 1D_19F_titration

2D spectra

spec2d = exampledata("2D_HN")
fig = nmrplot(spec2d)

Add 1D projections along either axis:

fig = nmrplot(exampledata("2D_HN"), xprojection=true, yprojection=true)

Plot a series of spectra in one call; colours cycle automatically and a legend can be added:

fig = nmrplot(exampledata("2D_HN_titration"), legend=:lt)

Or add spectra one-by-one with nmrplot!:

dats = exampledata("1D_19F_titration")
fig, ax = nmrplot(dats[1], title="", xlims=(-120, -128))
nmrplot!(fig, dats[5])
nmrplot!(fig, dats[10])
axislegend(ax)

Contour colours and levels

Negative contours are shown by default as a faded version of the positive colour. Disable them or set a different colour:

fig = nmrplot(spec2d; negcontours=false)

fig = nmrplot(spec2d; negcolor=:red)

Pass levels as an integer to change the number of contour levels, or as a vector of absolute values to use explicit levels:

nmrplot(spec2d; levels=8)                    # 8 geometric levels from 5σ
nmrplot(spec2d; levels=[2e6, 4e6, 8e6])      # explicit positive levels

spacing sets the geometric ratio between levels (default 1.7):

nmrplot(spec2d; spacing=2.0, levels=10)

Keyboard navigation (GLMakie)

In GLMakie, press ↑ / ↓ to raise or lower all contour levels in the figure by one step (multiplied/divided by spacing). The key repeats while held. This works for any spectrum added with nmrplot or nmrplot!.

Pseudo-2D spectra

Pseudo-2D spectra (one frequency + one non-frequency dimension) support three display styles via the style keyword:

diffusiondata = exampledata("pseudo2D_XSTE")
diffusiondata = setgradientlist(diffusiondata, LinRange(0.02, 0.98, 10))
fig = nmrplot(diffusiondata, xlims=(7, 9.5))

┌ Warning: a maximum gradient strength of 0.55 T m⁻¹ is being assumed - this is roughly correct for modern Bruker systems but calibration is recommended
└ @ NMRTools.NMRBase ~/work/NMRTools.jl/NMRTools.jl/src/NMRBase/nmrdata.jl:306

fig = nmrplot(diffusiondata, xlims=(7, 9.5), style=:flat)

fig = nmrplot(diffusiondata, xlims=(7, 9.5), style=:waterfall)

Saving figures

Makie figures can be saved using GLMakie or CairoMakie as png files:

save("spectrum.png", fig)
save("spectrum.png", fig; px_per_unit=2)  # 2× resolution

To save figures as vector graphics (pdf or svg), switch to CairoMakie:

using CairoMakie
save("spectrum.svg", fig)          # vector graphics
save("spectrum.pdf", fig)

Layout and composition

nmrplot accepts a GridPosition to place spectra into a shared figure alongside other Makie plots:

fig = Figure()
nmrplot(fig[1, 1], exampledata("1D_1H"); title="", xlims=(-1, 4.5))
nmrplot(fig[1, 2], exampledata("2D_HN"); title="", xlims=(6, 10))
scatter(fig[2, :], randn(100))

Axis properties can be customised after the fact via the returned ax handle, or passed up-front via the axis keyword:

fig, ax, plt = nmrplot(spec)
ax.title[] = "My spectrum"

# equivalently:
fig = nmrplot(spec; axis=(; title="My spectrum"))

Animations

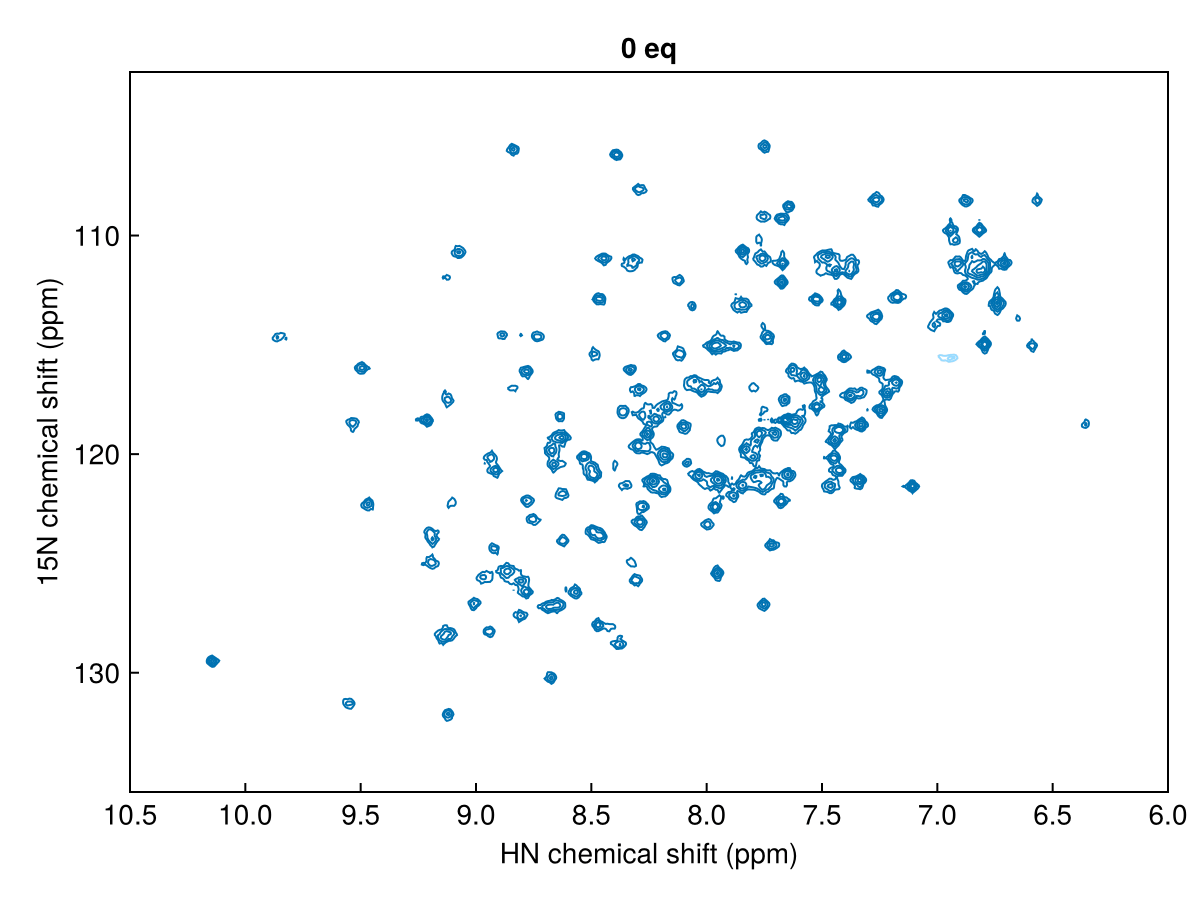

The standard Makie record function works directly with nmrplot!. This example cycles through a titration series and saves a GIF:

spectra = exampledata("2D_HN_titration")
ref = spectra[1]

fig, ax, _ = nmrplot(spectra[1]; normalize=ref, xlims=(6, 10.5))
record(fig, "makie-titration.gif", spectra; framerate=4) do s
    empty!(ax)
    ax.title[] = label(s)
    nmrplot!(ax, s; normalize=ref)
end

For interactive use with GLMakie, the same record approach works — or you can update the plot live by re-calling nmrplot! in response to user events.

Options reference

1D spectra

2D spectra
